BRANCH LOGGER (WOOD CHIPPER) JIRBO WORKER PREMIUM - WTD
Wood chipper (branch logger) JIRBO-WORKER offers in its compact size high crushing power. Thanks to a massive cutting module the machine is able to process logs up to 120mm in diameter. PTO firewood processor WORKER is always equipped by flywheel and transmission. The chipper is also equipped with a conveyor which allows continuous movement of chips straight to the tow. The result is an increase in the performance of the machine per hour.
WOOD CHIPPER BEHIND THE TRACTOR
The machine is driven by the tractor PTO shaft. The branch logger must always be operated with a cardan equipped with an overload clutch (which is not a part of the machine). The required tractor power is 20 kW or more.
| The machine features |
|---|
| Compact Crushing Module - rigid cabinet welded in one unit and fitted with six cut hardened knives |
| Transfer - optimum working speed and maximum power in the cutting system |
| Flywheel - high performance machine at low demands on the performance of the tractor |
| Equipped with simple bagging |
| Drawer for connecting of trailer |
| Serving of branches |

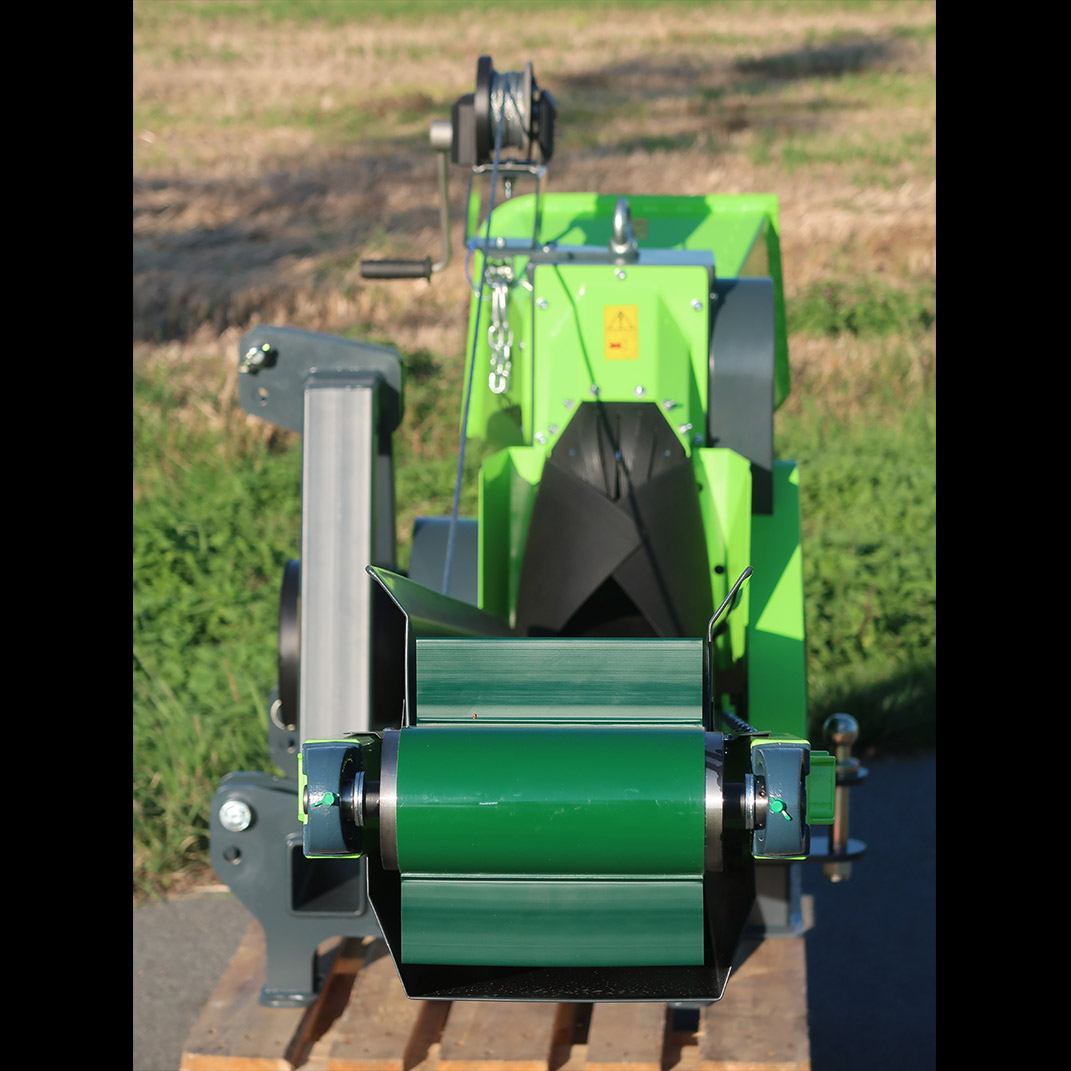

| Conveyor - effective hourly output of machines, wood chips are transported directly to the lift |
| Powder coating - high surface finish resistance |
| STOP handle - stops the machine after pressing |
| Technical parameters | |
|---|---|
| Maximum diameter of processed material (soft fresh wood) | Ø 120 mm (when tractor´s power 36 kW) |
| Minimal power of the tractor | 20 kW or more |
| Maximum diameter of processed material (dry hardwood) | Ø 90 mm |
| Connection to the three-point hitch of the tractor | category 1 and 2 |
| PTO max. rotation speed | 540 per min |
| Power of the machine | 13 m³/hour |
| Chip length | Dependent on branch diameter (100 mm to 200 mm) |
| Tow connection | fixed hinge |
| Dimensions (height x width x length) | 2940 mm x 900 mm x 1700 mm |
| Machine weight | 440 kg |
| Number of knives | 6 |
| Optional equipment |
|---|
| Cardan with overload clutch |
| Telscopic legs |
